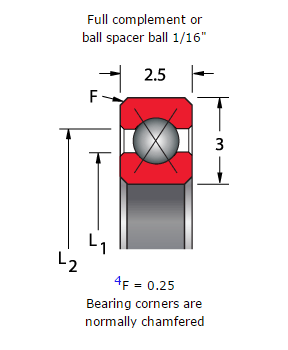

2.5 mm Thin series bearing manufacturer
Author： Time：2018-11-15 Views：765
| part | 内径 | 外径 | Land | Land | Dynamic1 | Static2 | (g) |
| number | dia. | dia. | dia. | ||||
| L1 | L2 | Radial | |||||
| S03503AS0 | 35 | 41 | 37.2 | 38.8 | 383 | 382 | 5 |
| S06003AS0 | 60 | 66 | 62.2 | 63.8 | 552 | 649 | 9 |
| S07003AS0 | 70 | 76 | 72.2 | 73.8 | 609 | 756 | 11 |
| S07403AS0 | 74 | 80 | 76.2 | 77.8 | 632 | 799 | 11 |
| S08003AS0 | 80 | 86 | 82.2 | 83.8 | 663 | 863 | 12 |
| S09003AS0 | 90 | 96 | 92.2 | 93.8 | 716 | 970 | 13 |
| S10003AS0 | 100 | 106 | 102.2 | 103.8 | 765 | 1077 | 15 |
| S11003AS0 | 110 | 116 | 112.2 | 113.8 | 814 | 1183 | 16 |
| S12003AS0 | 120 | 126 | 122.2 | 123.8 | 863 | 1290 | 18 |
| S13003AS0 | 130 | 136 | 132.2 | 133.8 | 912 | 1407 | 19 |
| S14003AS0 | 140 | 146 | 142.2 | 143.8 | 956 | 1514 | 21 |
| S15003AS0 | 150 | 156 | 152.2 | 153.8 | 1001 | 1621 | 22 |
| S16003AS0 | 160 | 166 | 162.2 | 163.8 | 1045 | 1727 | 24 |
| S17003AS0 | 170 | 176 | 172.2 | 173.8 | 1085 | 1834 | 25 |
| S03503CS0 | 35 | 41 | 37.2 | 38.8 | 418 | 418 | 5 |
| S06003CS0 | 60 | 66 | 62.2 | 63.8 | 605 | 711 | 9 |
| S07003CS0 | 70 | 76 | 72.2 | 73.8 | 667 | 827 | 11 |
| S07403CS0 | 74 | 80 | 76.2 | 77.8 | 689 | 875 | 11 |
| S08003CS0 | 80 | 86 | 82.2 | 83.8 | 725 | 944 | 12 |
| S09003CS0 | 90 | 96 | 92.2 | 93.8 | 783 | 1062 | 13 |
| S10003CS0 | 100 | 106 | 102.2 | 103.8 | 841 | 1178 | 15 |
| S11003CS0 | 110 | 116 | 112.2 | 113.8 | 894 | 1295 | 16 |
| S12003CS0 | 120 | 126 | 122.2 | 123.8 | 943 | 1412 | 18 |
| S13003CS0 | 130 | 136 | 132.2 | 133.8 | 1001 | 1540 | 19 |
| S14003CS0 | 140 | 146 | 142.2 | 143.8 | 1050 | 1658 | 21 |
| S15003CS0 | 150 | 156 | 152.2 | 153.8 | 1099 | 1774 | 22 |
| S16003CS0 | 160 | 166 | 162.2 | 163.8 | 1143 | 1891 | 24 |
| S17003CS0 | 170 | 176 | 172.2 | 173.8 | 1192 | 2006 | 25 |
| S03503XS0 | 35 | 41 | 37.2 | 38.8 | 585 | 711 | 5 |
| S06003XS0 | 60 | 66 | 62.2 | 63.8 | 847 | 1208 | 9 |
| S07003XS0 | 70 | 76 | 72.2 | 73.8 | 934 | 1407 | 11 |
| S07403XS0 | 74 | 80 | 76.2 | 77.8 | 965 | 1487 | 11 |
| S08003XS0 | 80 | 86 | 82.2 | 83.8 | 1015 | 1606 | 12 |
| S09003XS0 | 90 | 96 | 92.2 | 93.8 | 1096 | 1805 | 13 |
| S10003XS0 | 100 | 106 | 102.2 | 103.8 | 1177 | 2003 | 15 |
| S11003XS0 | 110 | 116 | 112.2 | 113.8 | 1252 | 2201 | 16 |
| S12003XS0 | 120 | 126 | 122.2 | 123.8 | 1320 | 2400 | 18 |
| S13003XS0 | 130 | 136 | 132.2 | 133.8 | 1401 | 2618 | 19 |
| S14003XS0 | 140 | 146 | 142.2 | 143.8 | 1470 | 2818 | 21 |
| S15003XS0 | 150 | 156 | 152.2 | 153.8 | 1538 | 3016 | 22 |
| S16003XS0 | 160 | 166 | 162.2 | 163.8 | 1600 | 3215 | 24 |
| S17003XS0 | 170 | 176 | 172.2 | 173.8 | 1669 | 3413 | 25 |
